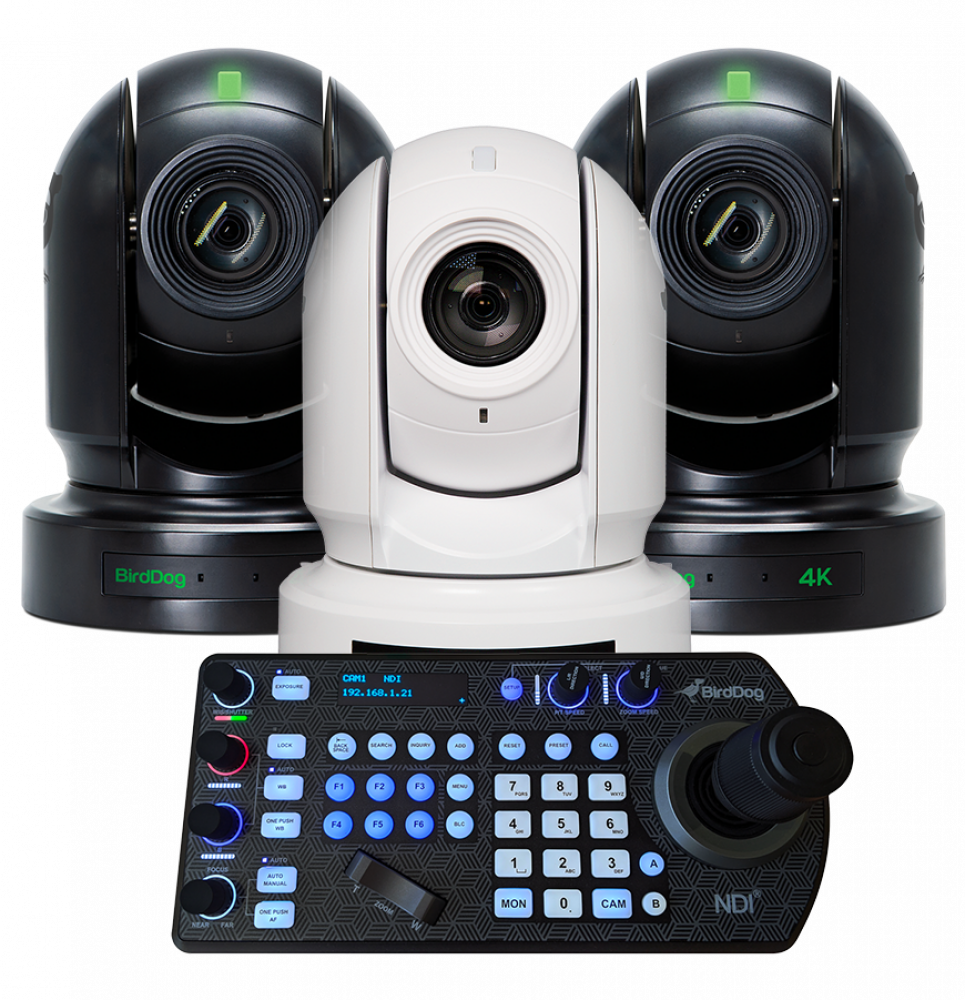

BirdDog P400 Bundle (2x P400 Black, 1x P400 White, and 1x FREE PTZ Keyboard)
BirdDog P400 Bundle (2x P400 Black, 1x P400 White, and 1x FREE PTZ Keyboard)
Stunning 4K NDI® with incredible colour tools.
P400 features stunning 4K resolution NDI and allows chroma subsampling in your choice of 4:2:0 or 4:2:2.
P400 teams up BirdDog’s custom NDI® silicon chip, a 4K Sony CMOS Backlit sensor, and a true Sony Image Module.
P400 includes professional-level colour tools including Colour Matrix control, Black level, Gamma including 512 pre-set gamma positions.
Full NDI®. No compromises.
In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P400 is a Full NDI® camera.
4:2:2 4K. Numbers matter.
P400 debuts the world’s first 4K NDI with chroma subsampling at 4:2:2 which can be decoded natively in hardware by BirdDog’s 4K Family of NDI Encoders and Decoders. If decoding with a 4:2:0 receiver the stream will automatically serve 4:2:0 and this is what will be decoded. Think of it as an automatic and virtual handshake.
FREE PTZ Keyboard
World’s First NDI® PTZ Controller.
BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for.
P400 - Tech Specs
Camera
- Image Sensor 1 / 2.5 inch CMOS 8.5MP
- Lens 4.4-88.4mm
- Optical Zoom 20x
- SRZ (Super Resolution Zoom) 30x in 4K, 40x in Full HD
- Horizontal Angle of View 70.2° (W) – 4.1° (T)
- Aperture F2.0 (W) – F3.8 (T)
- Min. Illumination Color: 0.4lux (1/30s, 50%, High Sensitivity mode On), 1.6lux (1/30s, 50%, High Sensitivity mode Off), 0.06lux(1/4s(1/3s),50%, High Sensitivity mode On)
- Shutter Speed 1/1 – 1/10000s
- Features Defog (Auto, 3 levels), Visibility enhancer, Black & White, E-Flip, Mirror, Colour enhancement, Black level, gamma, Sat/Hue Adjust, HLC, Colour Bar
- ND Filter YES
- Image Stabilizer YES
- Color Gain Yes (16 step)
- Color Hue Yes (16 step)
- Gamma Standard, Straight, 512 pattern
- Gamma Level Yes (72 step)
- Black Level Yes (97 step) – Flicker Cancel: Yes
- Noise Reduction On/Off (level 5 to 1/Off, 6 steps), 2D/3D
- S/N Ratio ≥50db
- Focus Auto Focus (Trigger/Interval), Manual Focus (Variable Speed), One Push Trigger, Near Limit
- White Balance AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto）
- Exposure Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE
- Backlight Compensation YES
Mechanical
- Pan Movement Horizontal: 350º (±175º) continuous pan (Zoom Adaptive Speed Range: 0.05°〜100°/s)
- Tilt Movement Vertical: +90º to -30º (Zoom Adaptive Speed Range: 0.05°〜50°/s)
- Preset Positions 128 (Speed adjustable: Up to 150°/s)
- Environmental Indoor
- Operating Temperature -10 – +40 (°C)
- Operating Humidity ≤80%
Video Interface
- Video Output NDI/HDMI/6G-SDI
- 4K Video Formats 4Kp 29.97, 25, 24, 23.98, 23.97
- HD Video Formats 1080p 60, 59.94, 50, 29.97, 25, 24, 23.97 • 1080i 60, 59.94, 50 • 720p 60, 59.94, 50
-
Analog Audio I/O
- 3.5mm Audio In (Mono)
- 3.5mm Audio Out (Mono)
-
Audio Output
- Embedded with main HDMI, 24bit
- Embedded with SDI, 24bit
- Embedded with NDI
Control Interface
- IP PTZ Control NDI Control (auto configuring), VISCA IP
- Serial PTZ Control 2x RJ45: RS232 / RS422 / RS485 Connectors
- Serial Control Protocol VISCA / PELCO D
Power & Dimensions
- Power Input 12v DC, PoE+ (IEEE 802.3at)
- Power Consumption Min. 23.2W – Max. 26.8W (PTZ move simultaneously)
- Dimensions 142x159x217mm
- Weight 2.7Kg
Network
- Video Compression Full NDI – i-frame high quality low latency NDI for production
- Network Protocol NDI – Discovery, configuration and control
- Web Control Interface Full control via Web/Mobile UI including Scene presets
- Optional Mounts Ceiling mount, Wall mount
2x P400 Black, 1x P400 White, and 1x FREE PTZ Keyboard - BDP400BUNDLE-BBW
