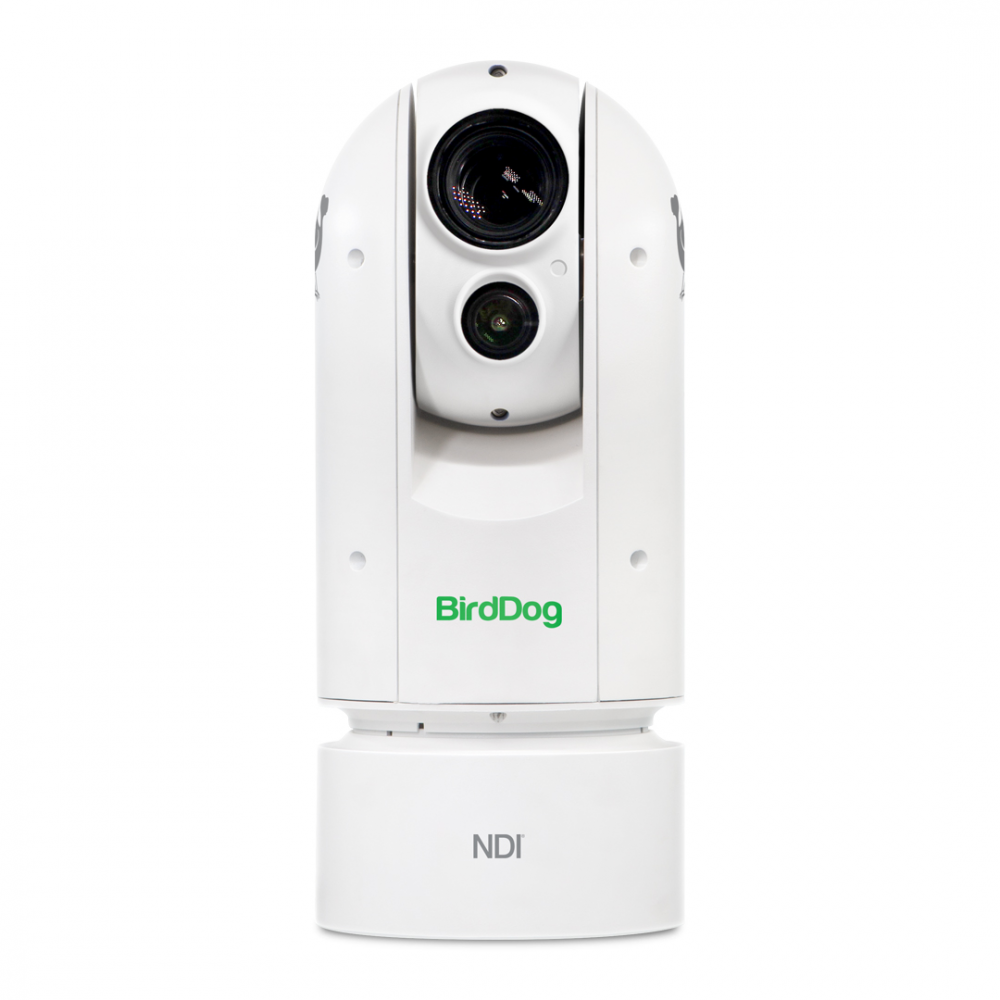

BirdDog A300 GEN2 Camera
BirdDog A300 GEN2 Camera
Weatherproof Full NDI® PTZ.
Designed for fixed outdoor installations such as sports, the IP67 rating and the Wind Load Durability rating equal to that of a category 4 Hurricane, which means A300 can withstand pretty much any weather conditions. By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS backlit sensor, and a true Sony Image module A300 has lightning auto focus, incredibly sharp images, and insanely fast zoom. A300 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI and Full NDI® simultaneously.
Tech Specs
Camera
- Image Sensor 1 / 2.8 inch CMOS 2.13MP
- Lens 4.3-129mm
- Optical Zoom 30x
- Digital Zoom 12x
- Horizontal Angle of View 63.7° (W) – 2.3° (T)
- Aperture F1.6 (W) – F4.7 (T)
- Min. Illumination Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)
- Shutter Speed 1/1 – 1/10000s
- Focus Auto, Push, Manual
- White Balance Auto, Indoor, Outdoor, Manual, OPW, ATW
- Exposure Auto, Manual, Shutter/Iris Priority
- Backlight Compensation YES
Mechanical
- Pan Movement Horizontal: 360° continuous pan (Zoom Adaptive Speed Range: 0.01°〜80°/s)
- Tilt Movement Vertical: +90° to -30° (Zoom Adaptive Speed Range: 0.1°〜90°/s)
- Preset Positions 255 (Speed adjustable: Up to 150°/s)
- Environmental Outdoor/Indoor, IP67, corrosion resistant treated housing, Wind load durability 60m/s, Nitrogen filled housing
- Operating Temperature -40 – +60 (°C)
- Operating Humidity ≤80%
- Illumination IR Laser, illumination up to 500m
Video Interface
- Video Output NDI/SDI
-
Video Formats
- 1080p 60, 59.94, 50, 29.97, 25
- 1080i 60, 59.94, 50
- 720p 60, 59.94, 50, 29.97, 25
-
Audio I/O
- 3.5mm Audio In (Stereo)
- 3.5mm Audio Out (Stereo)
Control Interface
- IP PTZ Control NDI Control (auto configuring), VISCA IP
- Serial PTZ Control RS422/RS485 Connector
- Serial Control Protocol VISCA / PELCO D
Power & Dimensions
- Power Input AC 24V, PoE 97W (BirdDog PoE 97W Injector, optional)
- Power Consumption Min: 36W; Max: 76.68W（Fully loaded operation with heater and IR Laser on）
- Dimensions 180x180x423mm
- Weight 10.2kg
Network
- Video Compression Full NDI – i-frame high quality low latency NDI for production
- Network Protocol NDI – Discovery, configuration and control
- Web Control Interface Full control via Web/Mobile UI including Scene presets
Weatherproof Full NDI Camera Now with Colour Matrix & Cam Control - BDA300GEN2
